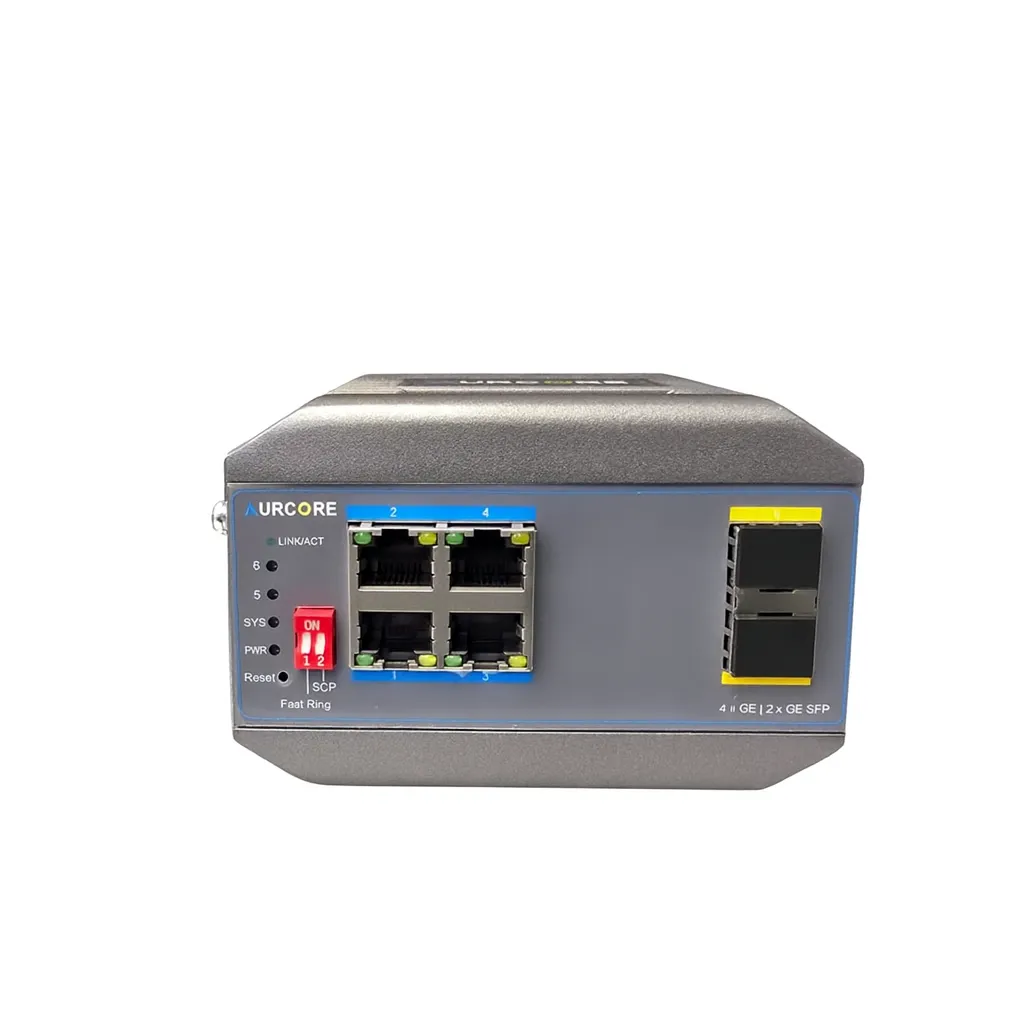

AurCore AIS2001 Network Switch 4GE+2GE SFP Non-PoE

Key Specifications

• Industrial Layer 2+ managed Ethernet switch designed for harsh environments
• Port configuration: 4× 10/100/1000 Mbps RJ45 + 2× 1Gb SFP uplink ports
• Switching capacity: 12 Gbps for high-throughput networking
• Forwarding rate: ~8.92 Mpps for fast packet processing
• Jumbo frame support: up to 9216 bytes for efficient large data transfers
• Wide operating temperature: -40°C to 75°C (industrial-grade reliability)
• Fanless aluminum enclosure for silent operation and efficient heat dissipation
• Dual power input (DC 12–55V) with auto-restart and relay alarm support
• Industrial protection: surge protection (±6KV common mode, ±2–4KV differential) and ESD protection
• Network features: VLAN (up to 4K), QoS, Static Routing, IGMP Snooping
• Redundancy protocols: STP, RSTP, MSTP, and ERPS ring protection (fast recovery <20ms)
• Security features: ACL, Port Security, Storm Control, IEEE 802.1X authentication
• Management options: Web GUI, CLI, Telnet, SSH, SNMP, Console access

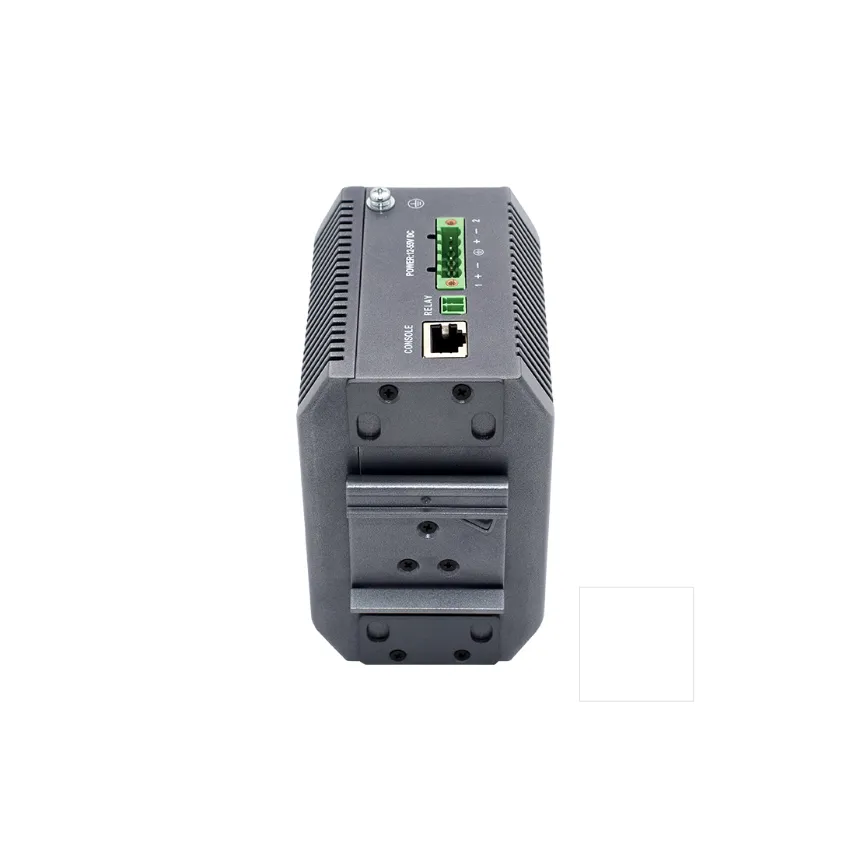

• Installation: DIN-rail or rack mounting support
• Compact industrial design with corrosion-resistant housing
