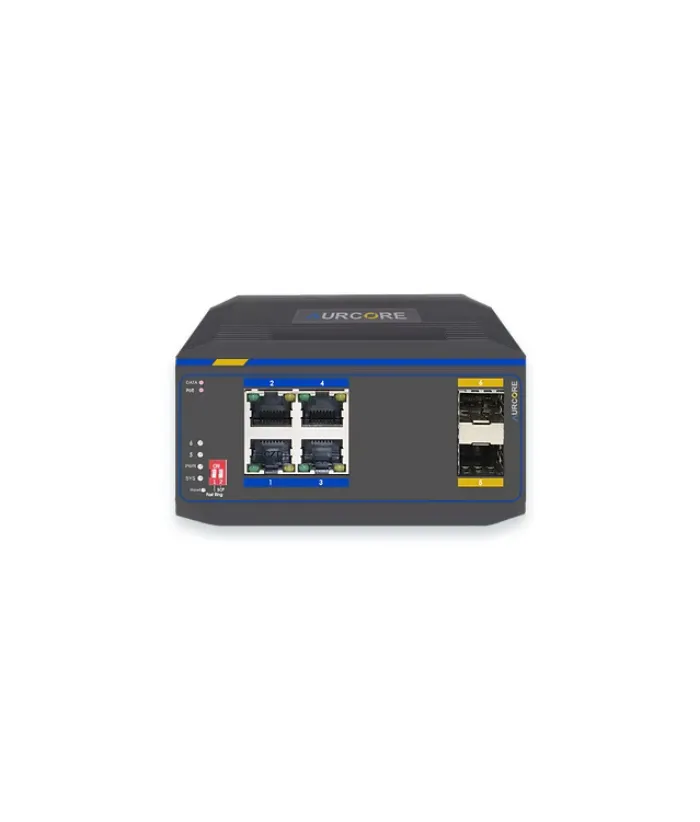

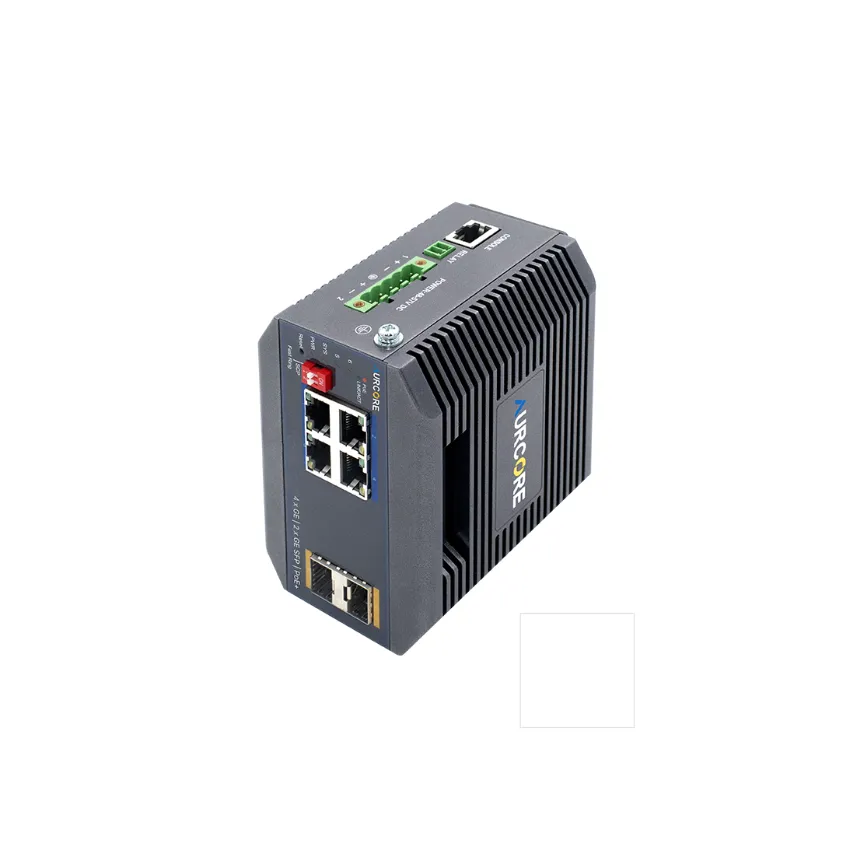

AurCore AIS2001P Network Switch 4GE+2GE SFP POE

Key Specifications

• Industrial Layer 2+ managed Ethernet switch with PoE+ support for powering network devices
• Port configuration: 4× Gigabit RJ45 PoE+ ports + 2× 1Gb SFP uplink slots
• PoE standard: IEEE 802.3af/at with total power budget up to ~120W
• Switching capacity: 12 Gbps for high-performance industrial networking
• Forwarding rate: ~8.92 Mpps for fast packet processing
• Jumbo frame support: up to 9216 bytes for efficient large data transfers
• Wide operating temperature: -40°C to 75°C for harsh environments
• Fanless aluminum enclosure for durability, silent operation, and heat dissipation
• Dual power input (DC 48–57V) with auto-restart and relay alarm support
• Industrial protection: surge protection (±6KV common, ±2KV differential) and ESD protection
• Network features: VLAN (up to 4K), QoS, Static Routing, IGMP Snooping
• Redundancy protocols: STP, RSTP, MSTP, ERPS ring protection (<20ms recovery)
• PoE management features: PoE watchdog, scheduling, port priority, warm start
• Security features: 802.1X, ACL, storm control, port isolation
• Management options: Web GUI, CLI, Telnet, SSH, SNMP, Console access

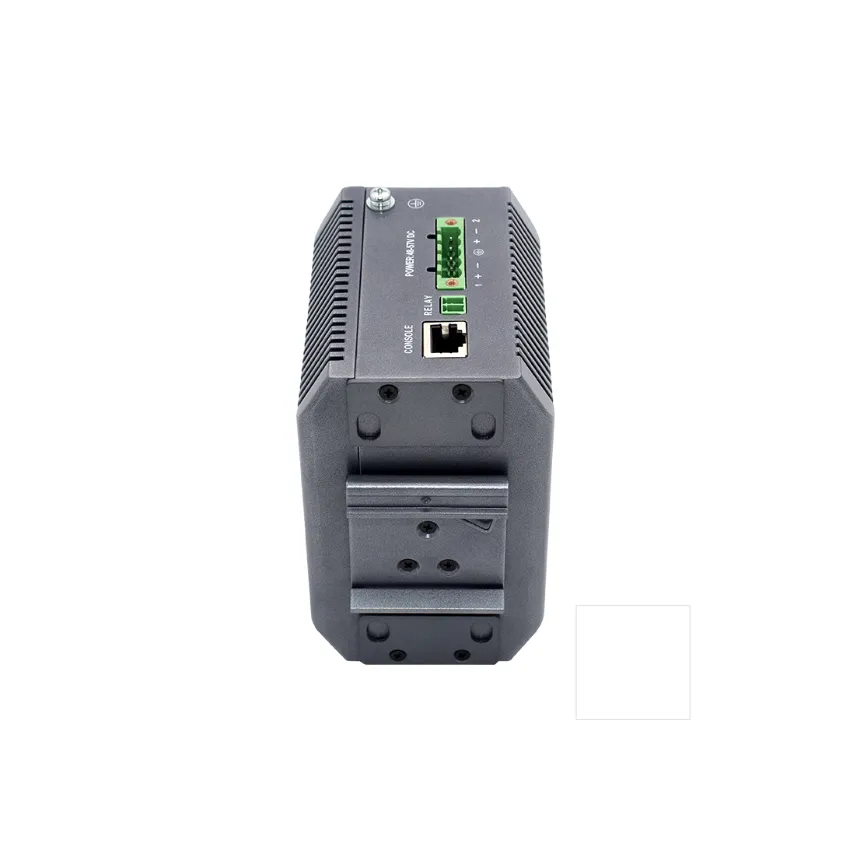

• Installation: DIN-rail or rack mounting support
