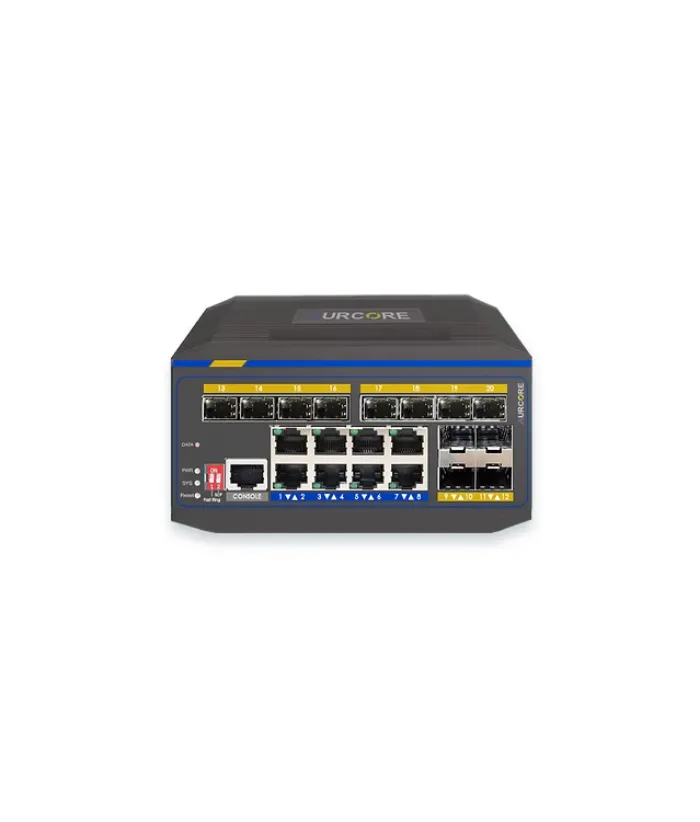

AurCore AIS2004P Network Switch 8 GE+12GE SFP POE/POE+

Key Specifications

• Industrial Layer 2+ managed Ethernet switch with PoE+ support for high-density deployments
• Port configuration: 8× Gigabit RJ45 PoE+ ports + 12× 1Gb SFP fiber uplink ports
• PoE standard: IEEE 802.3af/at (up to ~30W per port)
• Total PoE budget: up to ~180W–240W depending on configuration
• Switching capacity: 40 Gbps for high-performance industrial networking
• Forwarding rate: ~29.76 Mpps for fast packet processing
• Jumbo frame support: up to 9216 bytes for efficient large data transfers
• Wide operating temperature: -40°C to 75°C for extreme industrial environments
• Fanless aluminum enclosure for durability, silent operation, and corrosion resistance
• Dual power input (DC ~48–57V) with relay alarm and auto-restart support
• Industrial protection: surge protection (±6KV common mode) and ESD protection
• Network features: VLAN (up to 4K), QoS, Static Routing, IGMP Snooping
• Redundancy protocols: STP, RSTP, MSTP, ERPS (<20ms recovery)
• PoE management features: PoE watchdog, scheduling, port priority, smart restart
• Security features: ACL, 802.1X authentication, storm control, port isolation
• Management options: Web GUI, CLI, Telnet, SSH, SNMP, Console access

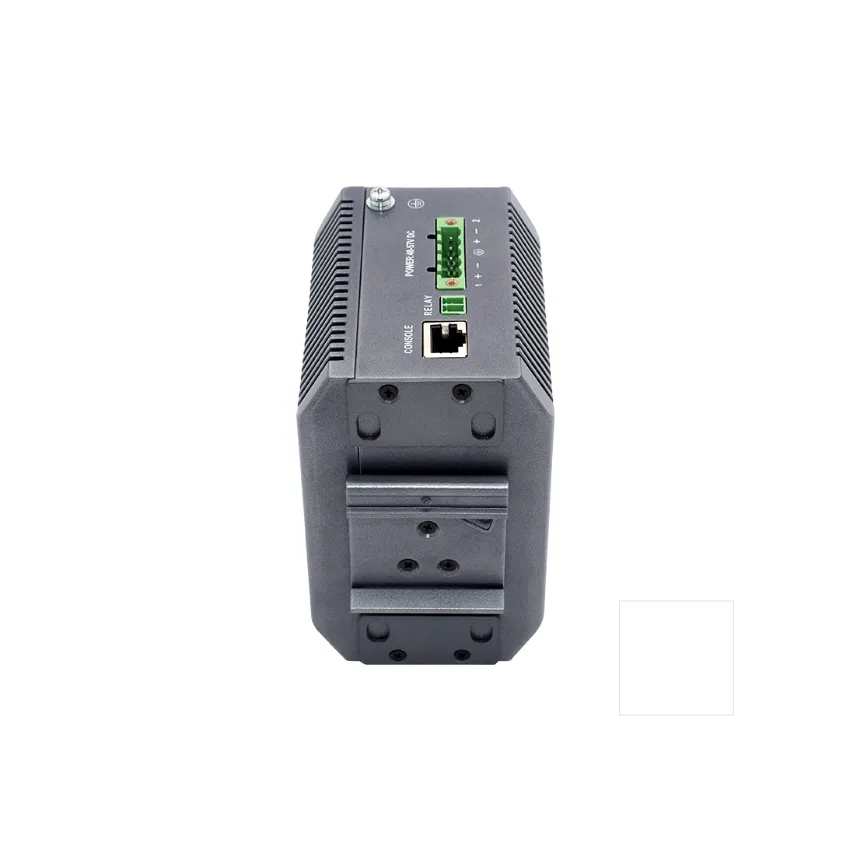

• Installation: DIN-rail or rack mounting support
