Ezviz X5S 4W - NVR

Key Specifications

• Wireless NVR (Network Video Recorder) for centralized CCTV storage and management
• Supports up to 4 Wi-Fi cameras simultaneously (4W model) for small systems
• Compatible with cameras up to 3K video resolution for clear recording quality

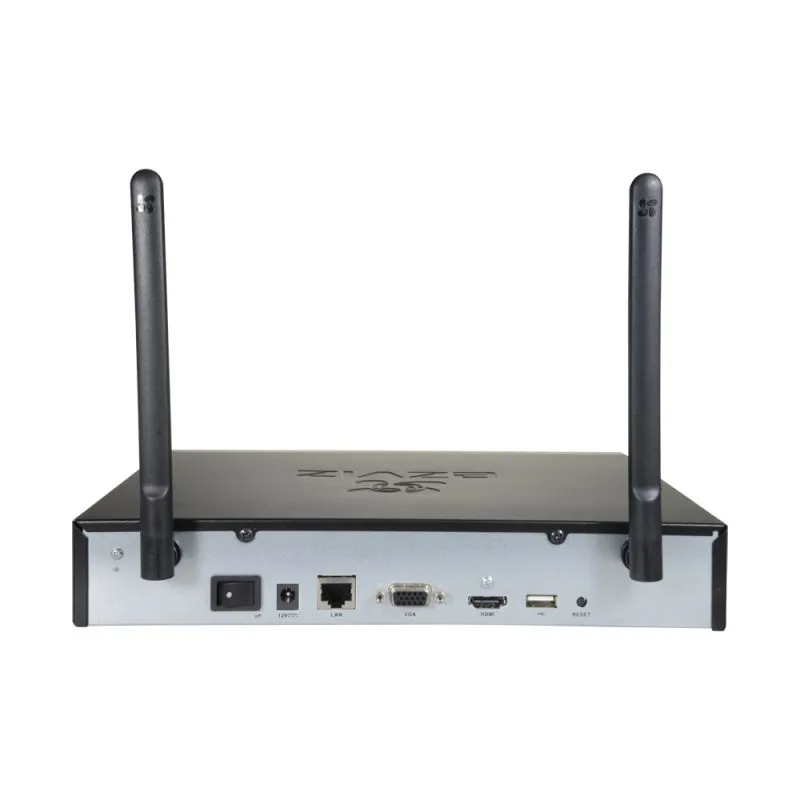

• HDMI and VGA outputs for monitor connection (up to ~3K display)
• H.265 / H.264 video compression for efficient storage and bandwidth usage
• Recording resolutions from CIF up to 3K for flexible video quality settings
• Supports 4-channel 3K decoding playback for smooth video review
• Storage support via 1× SATA HDD (1TB–8TB) for large-capacity recording
• Recording modes: manual, motion detection, scheduled, and event-based recording
• Playback modes: instant, normal, event, and log playback for easy retrieval
• Built-in Wi-Fi with up to ~100 m range for stable wireless connectivity
• Dual antennas for improved signal strength and coverage
• Supports ONVIF protocol for compatibility with third-party IP cameras
• 1× 10/100 Mbps Ethernet port for network integration
• 2× USB 2.0 ports for backup and peripheral devices
• Local HDD and network backup options for data protection
• 12V DC power supply with low power consumption (≤8W standby)

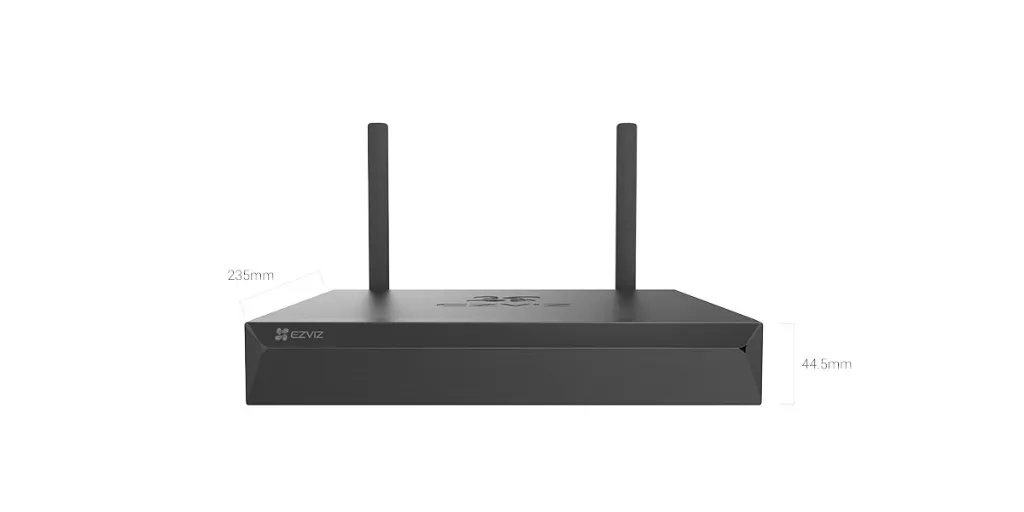

• Compact desktop design with 1U-style form factor for easy installation
• Ideal for home and small business surveillance systems requiring centralized recording
