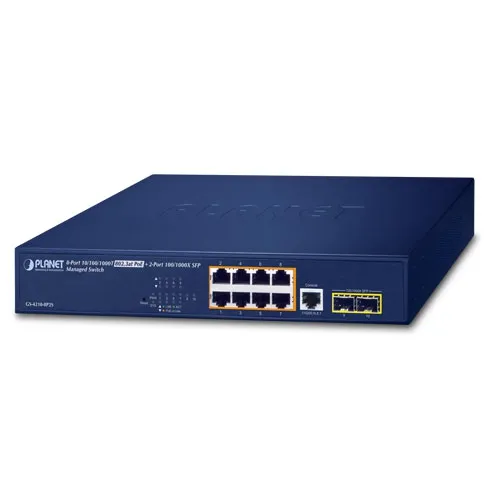

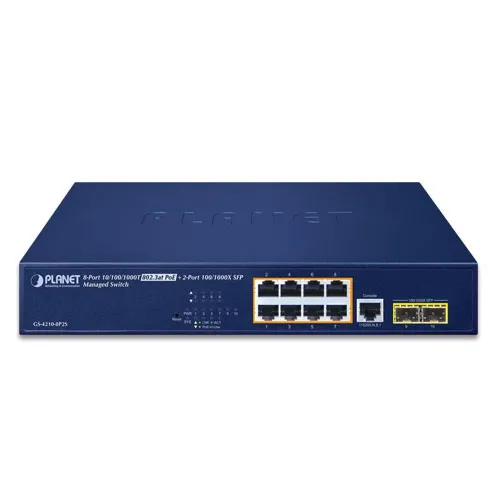

Planet (GS-4210-8P2S) 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch

Key Specifications

• L2/L4 managed Gigabit PoE+ switch designed for SMB surveillance, wireless, and VoIP networks
• 8× 10/100/1000 Mbps RJ45 PoE+ ports + 2× 100/1000BASE-X SFP uplink slots
• IEEE 802.3af/at PoE+ support, up to 30W per port
• Total PoE power budget up to 140W at 25°C / 120W at 50°C
• 20 Gbps non-blocking switching fabric with 14.88 Mpps forwarding throughput
• PoE Extend mode — supports PoE delivery up to 250 m at 10 Mbps (overcoming 100 m UTP limit)
• PD Alive Check, PoE scheduling, per-port power cycling, and real-time power monitoring
• ERPS (ITU-T G.8032) ring protection for fast network recovery and high availability
• STP / RSTP / MSTP with BPDU Guard and Filtering for loop prevention
• VLAN support: 802.1Q, Q-in-Q, Voice, Private, Management VLAN, and GVRP
• LACP link aggregation with failover support; IGMP and MLD snooping
• QoS: 802.1p/CoS/IP DSCP priority, per-port bandwidth control, and storm control
• IPv4/IPv6 L2–L4 ACL, DHCP snooping, IP source guard, and dynamic ARP inspection
• 802.1X port-based authentication with RADIUS and TACACS+ support
• SSHv2, TLS, and SNMPv3 for secure encrypted management
• SFP-DDM support; fiber range from 550 m (multi-mode) up to 120 km (single-mode/WDM)
• Web GUI, CLI, Telnet, SSH, and SNMP v1/v2c/v3 management options; CloudViewer App support
• Fanless desktop metal chassis; dimensions 330 × 155 × 43.5 mm; weight ~1.69 kg
• Max power consumption: 170W / 580 BTU; operating temperature 0–50°C
• FCC Part 15 Class A, CE, and LVD certified
