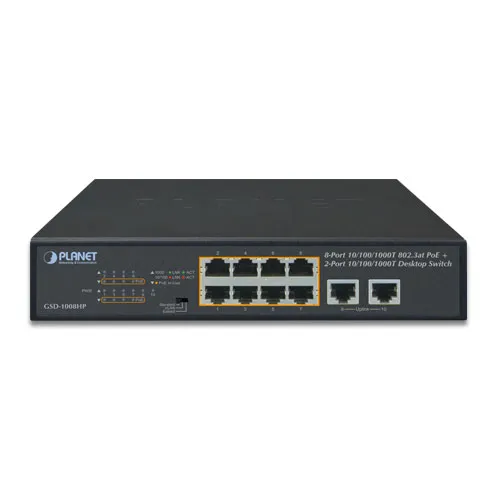

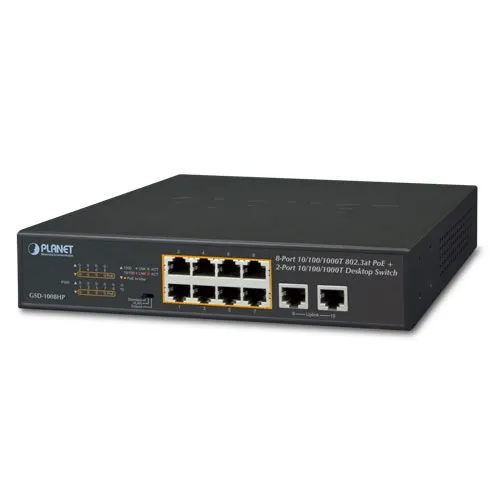

Planet (GSD-1008HP) 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch (120 watts)

Key Specifications

• Unmanaged desktop Gigabit PoE+ switch designed for SMB surveillance, wireless AP, and VoIP deployments
• 8× 10/100/1000 Mbps RJ45 PoE+ ports (ports 1–8) + 2× 10/100/1000 Mbps RJ45 uplink ports (non-PoE)
• IEEE 802.3af/at PoE+ support, up to 30W per port; 55V DC power delivery
• Total PoE power budget: 120W; max power consumption: 124W / 423.1 BTU (PoE full load)
• 20 Gbps non-blocking switching fabric with 14.88 Mpps forwarding throughput
• 8K MAC address table; IEEE 802.3x full-duplex flow control and half-duplex back pressure
• Hardware DIP switch for three operation modes: Standard, VLAN, and Extend
• VLAN mode — port-based VLAN isolation to prevent broadcast storms and DHCP spoofing
• Extend mode — PoE delivery up to 250 m at 10 Mbps, overcoming the standard 100 m UTP limit
• PD Alive Check — auto power-cycles unresponsive PoE devices to restore connectivity
• IEEE 802.1Q VLAN transparency for seamless integration into existing networks
• Auto-detects connected PDs; circuit protection prevents inter-port power interference
• Auto MDI/MDI-X on all ports; supports Cat5/5e/6 cabling
• Plug-and-play — no management interface or configuration required
• Compact desktop metal chassis; dimensions 220 × 150 × 43 mm; weight ~1.2 kg

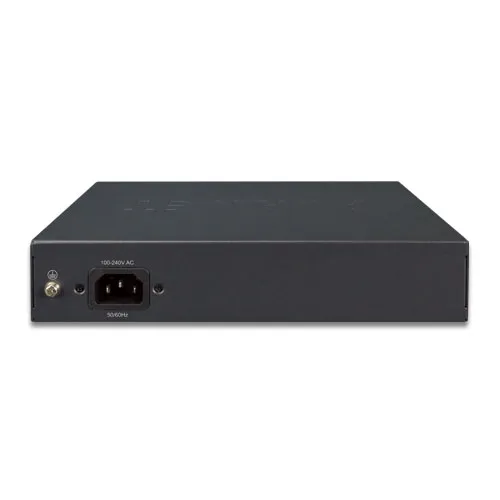

• AC 100–240V, 50/60Hz auto-sensing input; operating temperature 0–50°C
• FCC and CE certified
• Suitable for IP cameras, wireless APs, VoIP phones, and small office PoE deployments
