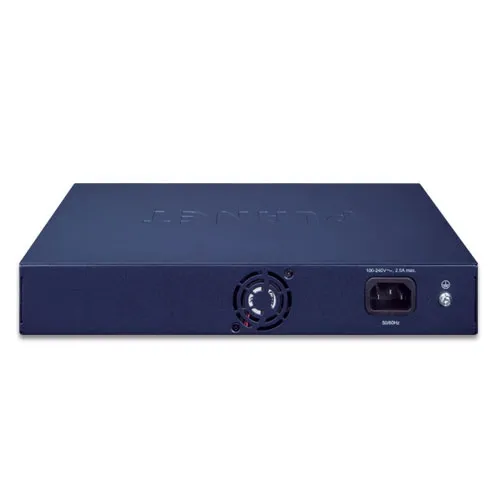

Planet (GSD-1222VHP) 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 1000X SFP Ethernet Switch with PoE LCD Monitor

Key Specifications

• Unmanaged desktop Gigabit PoE+ switch with built-in LCD display for real-time "Plug and Watch" monitoring — no PC or software required
• 8× 10/100/1000 Mbps RJ45 PoE+ ports + 2× 10/100/1000 Mbps RJ45 uplink ports + 2× 1000BASE-X SFP slots
• IEEE 802.3af/at PoE+ support, up to 30W per port; 54V DC power delivery
• Total PoE power budget: 120W; max power consumption: 130W
• 24 Gbps non-blocking switching fabric for wire-speed performance
• Front-panel LCD with intuitive color display — shows per-port PoE status, power usage, total budget, and error alerts
• LCD-based mode selection: Standard, VLAN, and Extend operation modes
• VLAN mode — port-based isolation to prevent broadcast storms and DHCP spoofing between IP cameras
• Extend mode — 30W PoE delivery up to 250 m at 10 Mbps, overcoming the standard 100 m UTP limit
• LCD management features: PoE enable/disable per port, power feeding priority, power limitation, PD alive check, screen saver, fan control, and factory reset
• Over-voltage, low-voltage, and PSE over-temperature protection via LCD alerts
• ESD protection: ±6KV contact discharge, ±8KV air discharge; ±6KV surge immunity
• SFP slots support 1000BASE-SX/LX and WDM fiber; range from 550 m (multi-mode) up to 120 km (single-mode/WDM)
• Auto MDI/MDI-X on all RJ45 ports; supports Cat5/5e/6 cabling
• Plug-and-play unmanaged operation — no CLI or web interface
• Compact desktop metal chassis; dimensions 280 × 180 × 44 mm; weight ~1.8 kg
• AC 100–240V, 50/60Hz auto-sensing input; operating temperature 0–50°C
• FCC and CE certified
• Suitable for IP cameras, NVR systems, wireless APs, VoIP, and HD surveillance deployments
