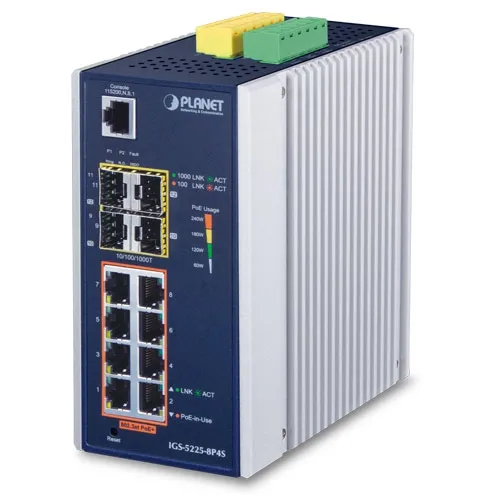

Planet (IGS-5225-8P4S) L2+ Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000X SFP Managed Ethernet Switch

Key Specifications

• Industrial Layer 2+ managed Gigabit Ethernet switch with PoE+ support for harsh environments
• Port configuration: 8× 10/100/1000 Mbps RJ45 PoE+ ports + 4× SFP fiber uplinks (2× 1G + 2× up to 2.5G)
• PoE standard: IEEE 802.3af/at with up to 36W per port
• Total PoE budget: up to ~240W depending on power input
• Switching capacity: ~30 Gbps non-blocking switching fabric
• Forwarding rate: ~22.32 Mpps for high-speed packet processing
• Jumbo frame support: up to 9K bytes for efficient large data transfers
• Wide operating temperature: -40°C to 75°C for industrial environments
• IP30-rated aluminum enclosure with fanless design for durability and silent operation
• Dual power input (12–54V DC) with redundancy and alarm relay support
• Industrial protection: 6KV ESD protection and surge resistance
• Advanced PoE management: watchdog (PD alive check), scheduling, priority control, power budgeting
• Redundancy protocols: ERPS (≤10ms recovery), STP, RSTP, MSTP for network stability
• Layer 3 features: static routing (IPv4/IPv6) with VLAN interface support
• Network features: VLAN (up to 4K), QoS, IGMP snooping, link aggregation (LACP)
• Security features: ACL, 802.1X authentication, DHCP snooping, IP source guard
• Management options: Web GUI, CLI, Telnet, SSH, SNMP (v1/v2c/v3), IPv4/IPv6 management
• Additional industrial features: IEEE 1588v2 PTP (time sync), Modbus TCP, DI/DO alarm interfaces
• Installation: DIN-rail or wall-mount with compact industrial design
